99.99% capture of zinc, chromium & nickel welding aerosols
Usage scenarios
- Production laser cutting & engraving lines
- Laser & handheld welding stations
- Metal processing / laser cleaning
- Multi-station shop floors

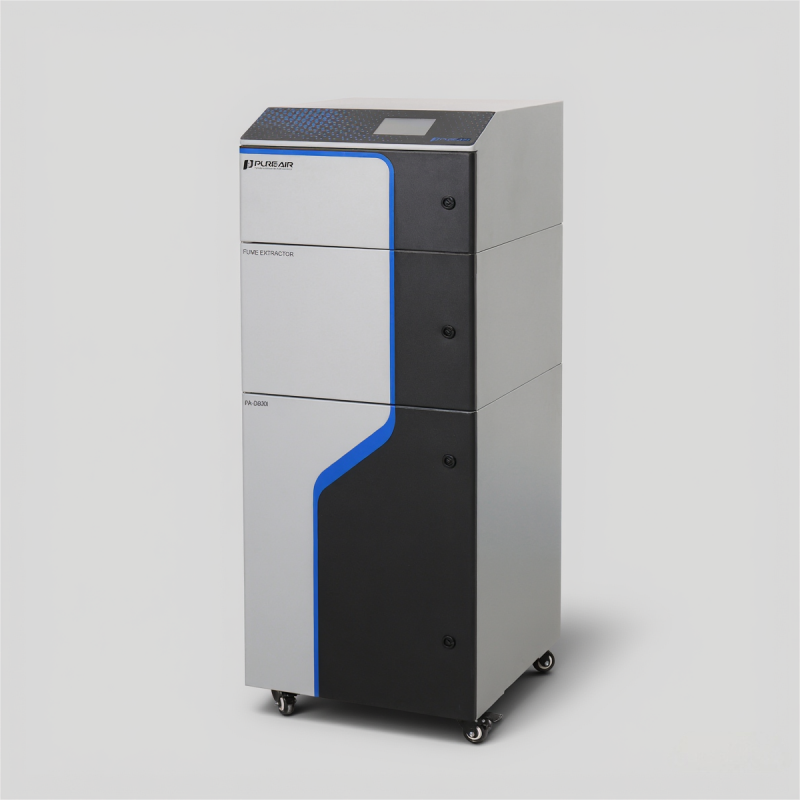

PA-D800 / D800i Welding Fume Extractor
99.99% capture of zinc, chromium & nickel aerosols.
Industrial systems are configured to your machines, duty cycle and duct layout, and ship by freight (LTL). Tell us about your shop and an engineer will respond within one business day.
Usage scenarios
- Production laser cutting & engraving lines
- Laser & handheld welding stations
- Metal processing / laser cleaning
- Multi-station shop floors
Get Factory-Direct Pricing
Engineer reply within 1 business day · volume pricing available
Engineered Ahead of the Spec Sheet
HEPA H14
99.99% @ 0.3 µm
One full grade above the H13 filters common in consumer fume extractors — H14 medical-grade media captures 99.99% of 0.3-micron smoke particles, the size laser fumes actually are.
Up to 10,000 Pa
High negative pressure
Suction that stays strong as filters load. High static pressure keeps capture velocity at the laser bed even months into a filter's life — no fade, no smell creeping back.
90–257 V
Multi-voltage, worldwide
Dual-range input (90–110 V / 210–257 V, 50/60 Hz) means the same unit runs anywhere on earth. Moving your studio abroad? Your extractor comes with you.
Product Details
Purpose-built for laser welding fume: the PA-D800 intercepts 99.99% of 0.3-micron welding fume, capturing zinc, chromium, nickel and other heavy-metal aerosols with flame-retardant PTFE cartridges. The D800i adds dual-pulse cleaning, automatic suction matching and RS-485 robotic synchronization.
Engineering Specs
| Airflow | 800 m³/h |
| Pressure | 10,000 Pa |
| Noise | < 62 dBA |
| Filtration | Flame-retardant PTFE cartridge + H14 |
| Inlet | 100 / 125 mm |
| Size / Weight | 500×597×1296 mm · 86 kg |
| Cleaning | Pulse auto-cleaning (300%+ efficiency) |
| Works with | Handheld laser welders, Laser cleaning systems, Spot & continuous welding, Robotic weld cells |
Compliance & Installation Support
Deploying in a commercial facility? We provide documentation support for NRTL field evaluations (e.g., SPE-1000 in Canada), duct sizing guidance, and combustible-dust (NFPA) process reviews so your local inspector signs off the first time.
One Extractor, Every Bench in the Shop
The same triple-stage stack handles particulate and gas-phase pollution across every maker workflow.
Laser Engraving & Cutting
Wood, acrylic, leather, MDF — captures smoke and VOC odor at the exhaust port before it fills the room.
Welding & Soldering
Hand soldering benches and laser welding stations — intercepts flux fume and heavy-metal aerosols at the source.
3D Printing
Resin post-processing and high-temp filament enclosures — clears styrene, VOCs and ultrafine particles.
Electronics & Lab Work
PCB rework, conformal coating and chemical experiments — bench-side extraction with a positionable arm or duct.
Certifications & Compliance
Every PURE-AIR unit ships from an ISO 9001-certified filtration factory with 10+ years of industrial extraction experience.
Compliance documentation (Declaration of Conformity, test reports) is available on request for commercial deployments — talk to an engineer.
