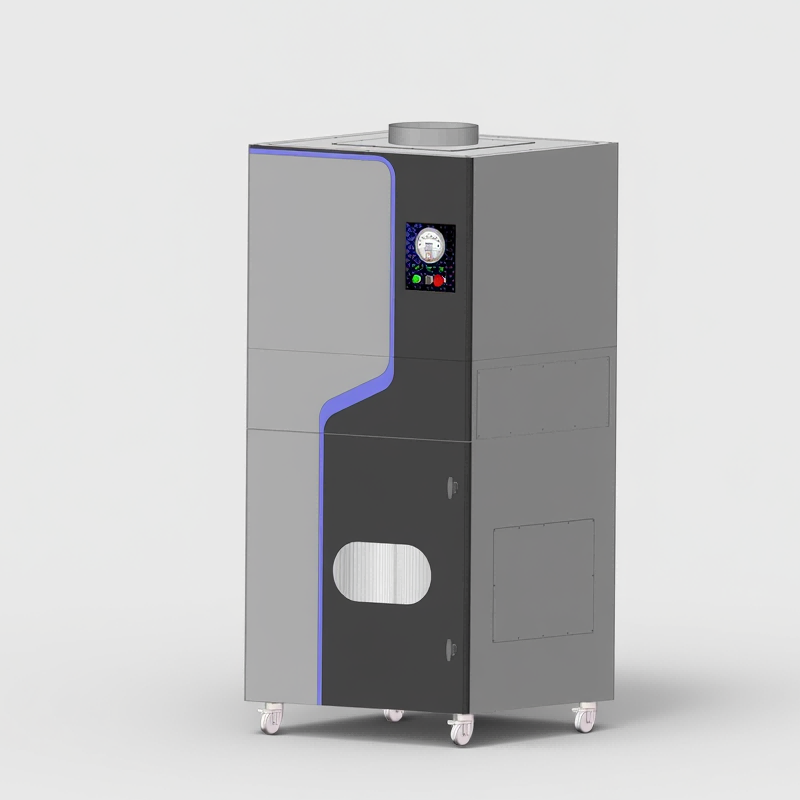

PA-D5000 Central Extraction System

Name: PA-D5000 Central Extraction System
Brand: PURE-AIR
SKU: PA-D5000
Availability: InStock

5,000–12,000 m³/h for whole-floor fume control.

Pricing on request

Every PURE-AIR system is configured to your machines, duty cycle and shipping destination. Tell us about your setup and our team responds within one business day with factory-direct pricing.

Request a Quote →

🚚 US warehouse stock · ships in 24h · 🛡 2-year warranty, 30-day returns

Engineering Specs

Airflow5,000–12,000 m³/h

Pressure3,200–3,500 Pa

Power5.5–15 kW · 3-phase

FiltrationPTFE cartridges + optional carbon

Inlet250–400 mm

Weight260–850 kg

ModelsD5000 / D6000 / D10000 / D12000

Works With

Large-format laser cutting (2×4 m+)Multi-station weld shopsProduction floorsExplosion-proof DE series available

Product Details

PURE-AIR's central D-series systems scale from 5,000 to 12,000 m³/h for big-workpiece laser cutting and multi-station welding. Pre-separation chambers capture 80-85% of large particulates before the cartridge stage, and the explosion-proof DE variants handle aluminum and magnesium alloy dust.

Filter Economics

Modular filter stacks replace only the spent stage — a 40-50% running-cost reduction versus sealed OEM cartridges. Buy 2+ replacement filter sets and a 5% bulk discount applies automatically at checkout.

Estimate your annual filter cost →

Frequently Asked Questions

How do I get pricing for the PA-D5000 Central Extraction System?

Click "Request a Quote" and tell us your machine model, quantity and shipping ZIP code. Our team replies within one business day with factory-direct pricing, freight options and any adapter recommendations for your laser.

Will it connect to my laser's exhaust port?

Yes — PURE-AIR ships adapter rings covering 50 / 75 / 100 mm ports, which fit xTool, Bambu Lab, Glowforge, OMTech, Creality Falcon, Aeon, Universal Laser, Epilog and Trotec machines. Check the Machine Fit Guide for your exact model, or ask in your quote request.

How often do filters need replacing?

Pre-filters typically last 1-2 months, the HEPA H14 main filter 4-6 months, and the activated-carbon stage 3-4 months under regular cutting. Because the stack is modular, you only replace the stage that's spent — and 2+ filter sets earn an automatic 5% discount.
