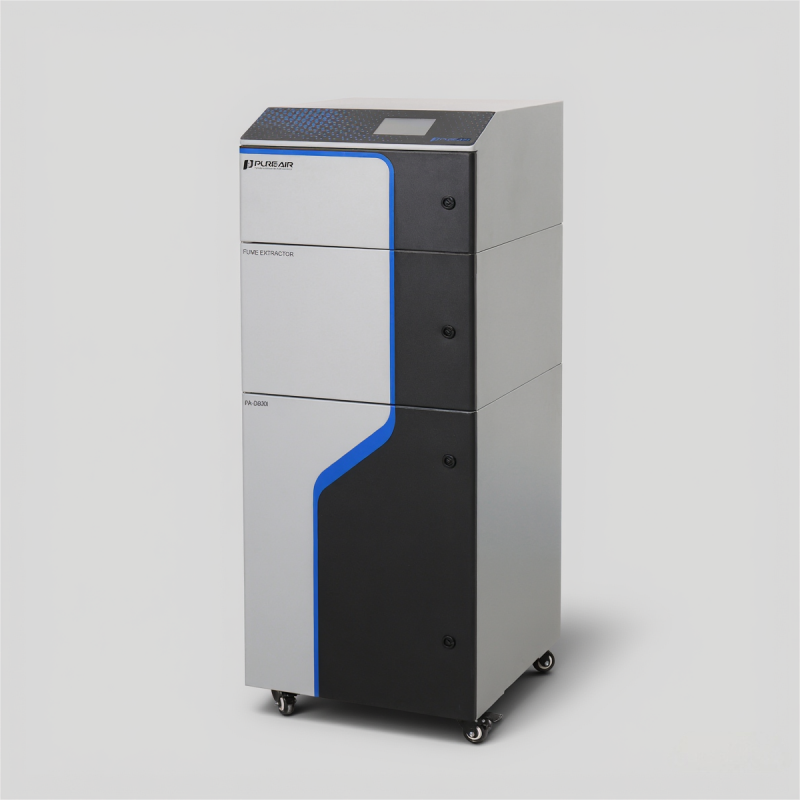

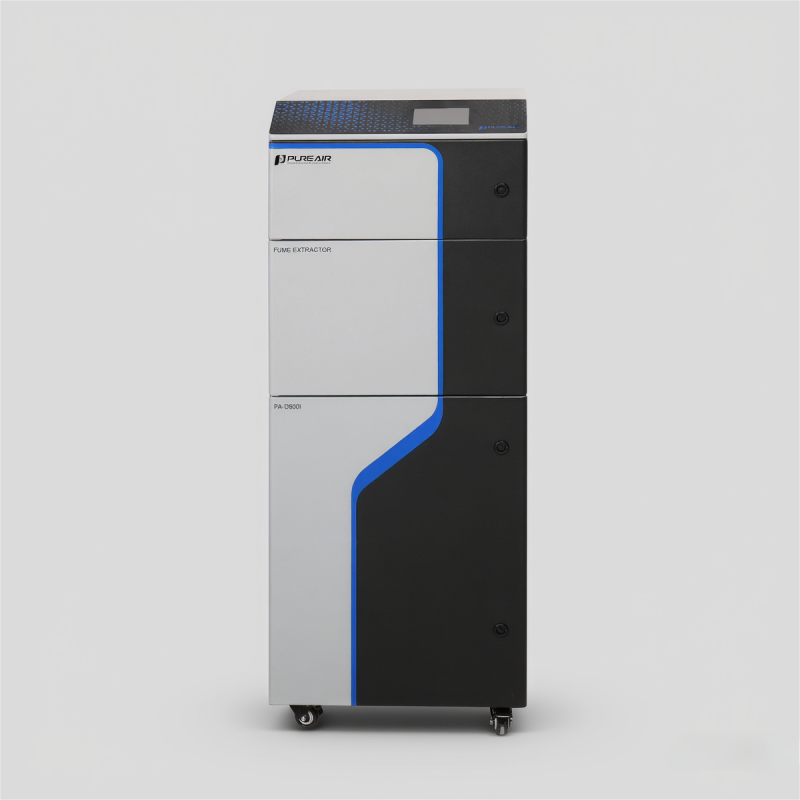

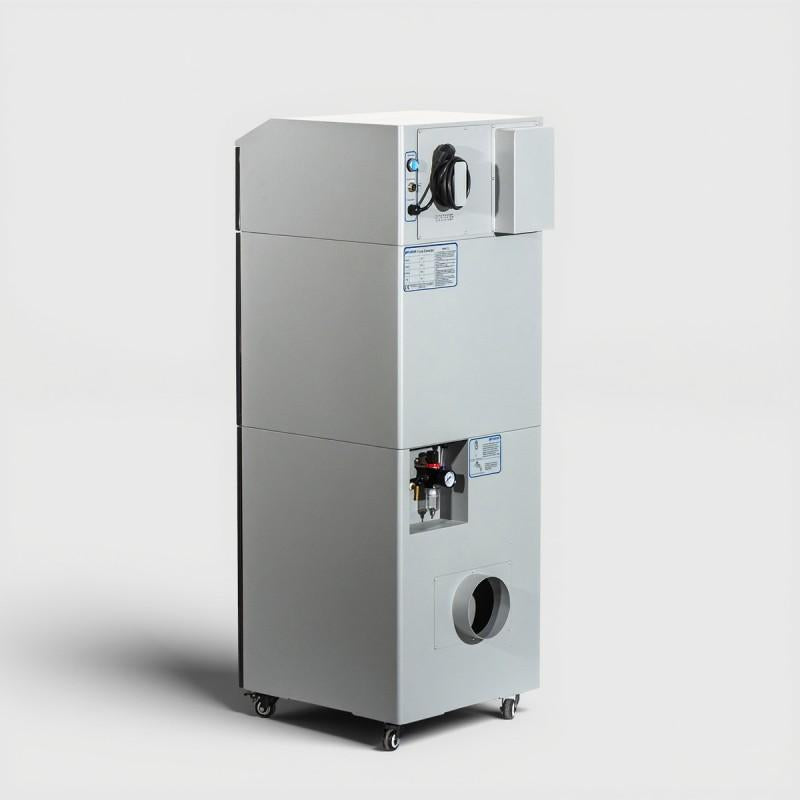

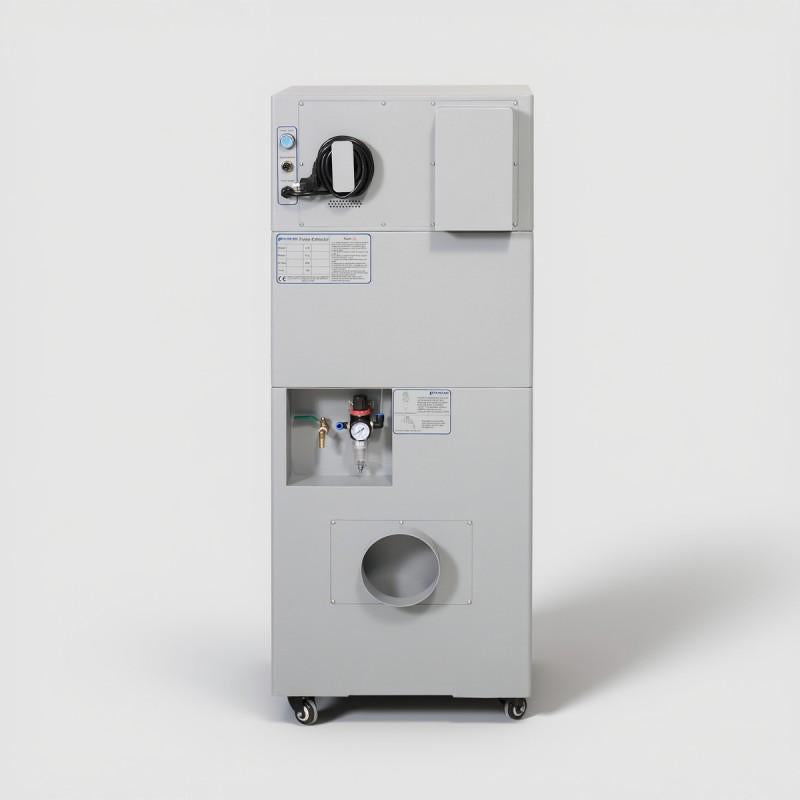

PA-D800 Laser Dust Collector

Name: PA-D800 Laser Dust Collector
Brand: PURE-AIR
SKU: PA-D800
Availability: InStock

99.99% capture of zinc, chromium & nickel aerosols.

Pricing on request

Every PURE-AIR system is configured to your machines, duty cycle and shipping destination. Tell us about your setup and our team responds within one business day with factory-direct pricing.

Request a Quote →

🚚 US warehouse stock · ships in 24h · 🛡 2-year warranty, 30-day returns

Engineering Specs

Airflow800 m³/h

Pressure10,000 Pa

Noise< 62 dBA

FiltrationFlame-retardant PTFE cartridge + H14

Inlet100 / 125 mm

Size / Weight500×597×1296 mm · 86 kg

CleaningPulse auto-cleaning (300%+ efficiency)

Works With

Handheld laser weldersLaser cleaning systemsSpot & continuous weldingRobotic weld cells

Product Details

Purpose-built for laser welding fume: the PA-D800 intercepts 99.99% of 0.3-micron welding fume, capturing zinc, chromium, nickel and other heavy-metal aerosols with flame-retardant PTFE cartridges. The D800i adds dual-pulse cleaning, automatic suction matching and RS-485 robotic synchronization.

Filter Economics

Modular filter stacks replace only the spent stage — a 40-50% running-cost reduction versus sealed OEM cartridges. Buy 2+ replacement filter sets and a 5% bulk discount applies automatically at checkout.

Estimate your annual filter cost →

Frequently Asked Questions

How do I get pricing for the PA-D800 Laser Dust Collector?

Click "Request a Quote" and tell us your machine model, quantity and shipping ZIP code. Our team replies within one business day with factory-direct pricing, freight options and any adapter recommendations for your laser.

Will it connect to my laser's exhaust port?

Yes — PURE-AIR ships adapter rings covering 50 / 75 / 100 mm ports, which fit xTool, Bambu Lab, Glowforge, OMTech, Creality Falcon, Aeon, Universal Laser, Epilog and Trotec machines. Check the Machine Fit Guide for your exact model, or ask in your quote request.

How often do filters need replacing?

Pre-filters typically last 1-2 months, the HEPA H14 main filter 4-6 months, and the activated-carbon stage 3-4 months under regular cutting. Because the stack is modular, you only replace the stage that's spent — and 2+ filter sets earn an automatic 5% discount.
